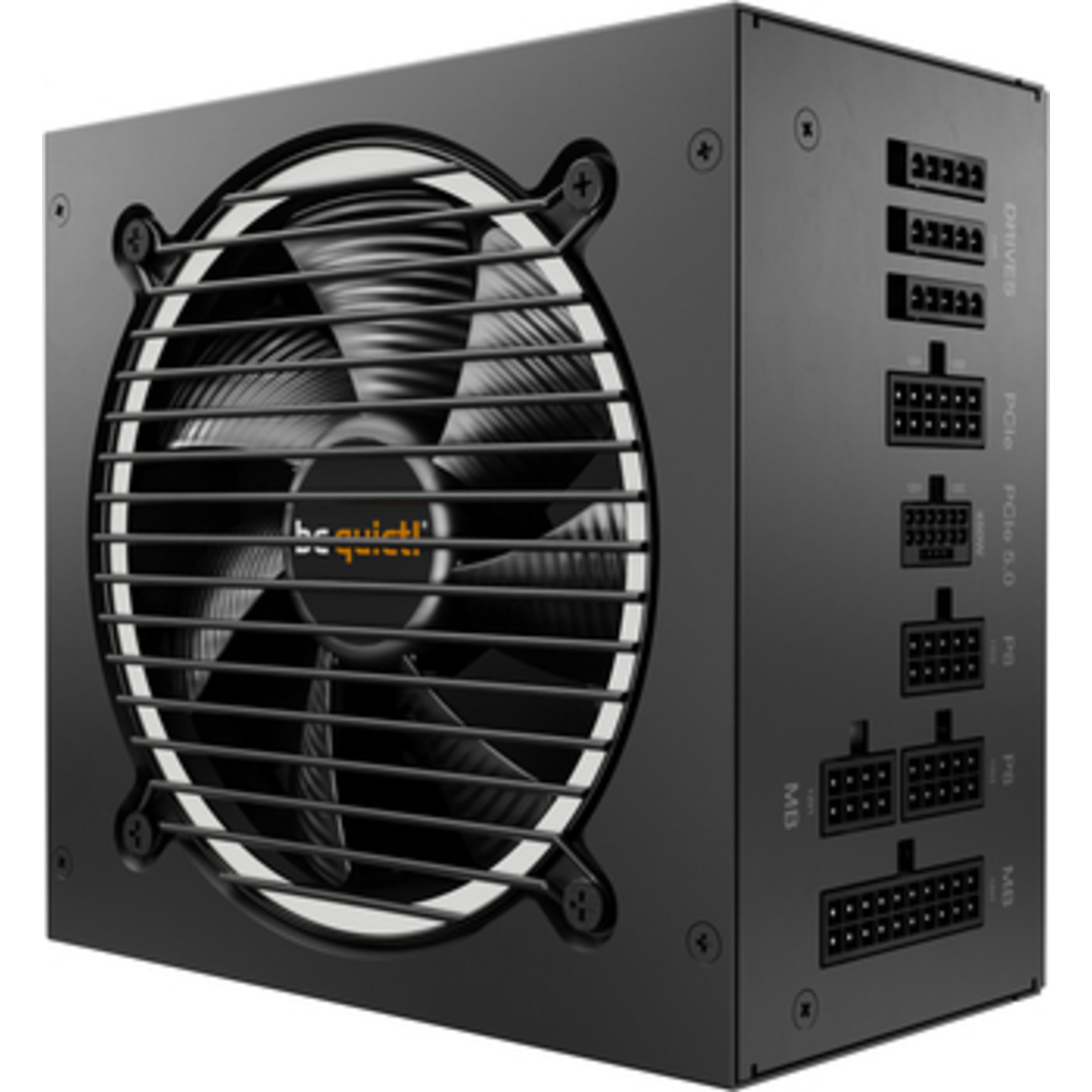

Pure Power 12 M power supply unit 650 W 20+4 pin ATX ATX Black
Compliance certificates: RoHS Sustainability compliance: Yes Sustainability certificates: ENERGY STAR, ErP Warranty period: 10 year(s) Cooling type: Active Fan location: Top On/off switch: Yes Product colour: Black Fan diameter: 12 cm Number of fans: 1 fan(s) Power protection features: Overheating, Short circuit, Over voltage, Over power, Over current Max output current (+12V1): 32 A Input current: 10/5 A Combined power (+3.3V): 120 W AC input frequency: 50 - 60 Hz Combined power (+5Vsb): 15 W Total power: 650 W Combined power (-12V): 3.6 W Max output current (+12V2): 28 A Power Factor Correction (PFC) type: Active Combined power (+12V): 650 W AC input voltage: 100 - 240 V Combined power (+5V): 120 W Power factor: 0.98 Efficiency: 92.7% Max output current (+3.3V): 20 A Max output current (+5V): 20 A Max output current (-12V): 0.3 A Peak power: 720 W Max output current (+5Vsb): 3 A Power Good signal delay range: 100 - 150 ms Operating temperature (T-T): 0 - 40 °C Height: 86 mm Width: 160 mm Depth: 150 mm 80 PLUS certification: 80 PLUS Gold Noise level: 19.9 dB Purpose: PC Power supply unit (PSU) form factor: ATX Mean time between failures (MTBF): 100000 h EPS version: 2.92 ATX version: 3.0 Package type: Box Cables included: PATA, PCIe, Peripheral (Molex), SATA Peripheral (Molex) power connectors (4-pin): 1 PCI Express power connectors (6+2 pin): 2 Cabling type: Fully-Modular ATX power connector (20+4 pin): Yes PCI Express connector: Yes SATA power cable length: 500, 800 mm, 650 mm, 950 mm CPU P4 connector (4-pin): 1 Number of PATA power connectors: 2 EPS power connector (4+4 pin): Yes Number of SATA power connectors: 5 Motherboard power cable length: 55 cm Peripheral (Molex) power cable length: 550 mm Motherboard power connector: 20+4 pin ATX Cable ties included: Yes Screws included: Yes Number of screws: 5 Noise level (quiet mode, 50%): 9.1 dB Noise level (silent mode,
Pure Power 12 M power supply unit 650 W 20+4 pin ATX ATX Black
Compliance certificates: RoHS Sustainability compliance: Yes Sustainability certificates: ENERGY STAR, ErP Warranty period: 10 year(s) Cooling type: Active Fan location: Top On/off switch: Yes Product colour: Black Fan diameter: 12 cm Number of fans: 1 fan(s) Power protection features: Overheating, Short circuit, Over voltage, Over power, Over current Max output current (+12V1): 32 A Input current: 10/5 A Combined power (+3.3V): 120 W AC input frequency: 50 - 60 Hz Combined power (+5Vsb): 15 W Total power: 650 W Combined power (-12V): 3.6 W Max output current (+12V2): 28 A Power Factor Correction (PFC) type: Active Combined power (+12V): 650 W AC input voltage: 100 - 240 V Combined power (+5V): 120 W Power factor: 0.98 Efficiency: 92.7% Max output current (+3.3V): 20 A Max output current (+5V): 20 A Max output current (-12V): 0.3 A Peak power: 720 W Max output current (+5Vsb): 3 A Power Good signal delay range: 100 - 150 ms Operating temperature (T-T): 0 - 40 °C Height: 86 mm Width: 160 mm Depth: 150 mm 80 PLUS certification: 80 PLUS Gold Noise level: 19.9 dB Purpose: PC Power supply unit (PSU) form factor: ATX Mean time between failures (MTBF): 100000 h EPS version: 2.92 ATX version: 3.0 Package type: Box Cables included: PATA, PCIe, Peripheral (Molex), SATA Peripheral (Molex) power connectors (4-pin): 1 PCI Express power connectors (6+2 pin): 2 Cabling type: Fully-Modular ATX power connector (20+4 pin): Yes PCI Express connector: Yes SATA power cable length: 500, 800 mm, 650 mm, 950 mm CPU P4 connector (4-pin): 1 Number of PATA power connectors: 2 EPS power connector (4+4 pin): Yes Number of SATA power connectors: 5 Motherboard power cable length: 55 cm Peripheral (Molex) power cable length: 550 mm Motherboard power connector: 20+4 pin ATX Cable ties included: Yes Screws included: Yes Number of screws: 5 Noise level (quiet mode, 50%): 9.1 dB Noise level (silent mode,
Pure Power 12 M power supply unit 650 W 20+4 pin ATX ATX Black
Compliance certificates: RoHS Sustainability certificates: ENERGY STAR, ErP Warranty period: 10 year(s) Sustainability compliance: Yes On/off switch: Yes Cooling type: Active Product colour: Black Fan diameter: 12 cm Number of fans: 1 fan(s) Fan location: Top Power Factor Correction (PFC) type: Active Input current: 10/5 A AC input frequency: 50 - 60 Hz Max output current (+12V2): 28 A Combined power (+3.3V): 120 W Max output current (+3.3V): 20 A Power protection features: Short circuit, Over voltage, Over power, Overheating, Over current Max output current (+5V): 20 A Max output current (+12V1): 32 A AC input voltage: 100 - 240 V Efficiency: 92.7% Combined power (+5Vsb): 15 W Combined power (+12V): 650 W Max output current (+5Vsb): 3 A Combined power (+5V): 120 W Power factor: 0.98 Total power: 650 W Combined power (-12V): 3.6 W Max output current (-12V): 0.3 A Power Good signal delay range: 100 - 150 ms Peak power: 720 W Operating temperature (T-T): 0 - 40 °C Width: 160 mm Height: 86 mm Depth: 150 mm Mean time between failures (MTBF): 100000 h 80 PLUS certification: 80 PLUS Gold ATX version: 3.0 EPS version: 2.92 Purpose: PC Noise level: 19.9 dB Power supply unit (PSU) form factor: ATX Package type: Box Cables included: PATA, PCIe, Peripheral (Molex), SATA CPU P4 connector (4-pin): 1 Peripheral (Molex) power connectors (4-pin): 1 Motherboard power cable length: 55 cm SATA power cable length: 650 mm, 950 mm, 800 mm, 500 Motherboard power connector: 20+4 pin ATX PCI Express power connectors (6+2 pin): 2 Cabling type: Fully-Modular ATX power connector (20+4 pin): Yes EPS power connector (4+4 pin): Yes Number of PATA power connectors: 2 PCI Express connector: Yes Number of SATA power connectors: 5 Peripheral (Molex) power cable length: 550 mm Number of screws: 5 Cable ties included: Yes Screws included: Yes Noise level (silent mode,
Pure Power 12 M power supply unit 650 W 20+4 pin ATX ATX Black
Compliance certificates: RoHS Sustainability certificates: ENERGY STAR, ErP Warranty period: 10 year(s) Sustainability compliance: Yes On/off switch: Yes Cooling type: Active Product colour: Black Fan diameter: 12 cm Number of fans: 1 fan(s) Fan location: Top Power Factor Correction (PFC) type: Active Input current: 10/5 A AC input frequency: 50 - 60 Hz Max output current (+12V2): 28 A Combined power (+3.3V): 120 W Max output current (+3.3V): 20 A Power protection features: Short circuit, Over voltage, Over power, Overheating, Over current Max output current (+5V): 20 A Max output current (+12V1): 32 A AC input voltage: 100 - 240 V Efficiency: 92.7% Combined power (+5Vsb): 15 W Combined power (+12V): 650 W Max output current (+5Vsb): 3 A Combined power (+5V): 120 W Power factor: 0.98 Total power: 650 W Combined power (-12V): 3.6 W Max output current (-12V): 0.3 A Power Good signal delay range: 100 - 150 ms Peak power: 720 W Operating temperature (T-T): 0 - 40 °C Width: 160 mm Height: 86 mm Depth: 150 mm Mean time between failures (MTBF): 100000 h 80 PLUS certification: 80 PLUS Gold ATX version: 3.0 EPS version: 2.92 Purpose: PC Noise level: 19.9 dB Power supply unit (PSU) form factor: ATX Package type: Box Cables included: PATA, PCIe, Peripheral (Molex), SATA CPU P4 connector (4-pin): 1 Peripheral (Molex) power connectors (4-pin): 1 Motherboard power cable length: 55 cm SATA power cable length: 650 mm, 950 mm, 800 mm, 500 Motherboard power connector: 20+4 pin ATX PCI Express power connectors (6+2 pin): 2 Cabling type: Fully-Modular ATX power connector (20+4 pin): Yes EPS power connector (4+4 pin): Yes Number of PATA power connectors: 2 PCI Express connector: Yes Number of SATA power connectors: 5 Peripheral (Molex) power cable length: 550 mm Number of screws: 5 Cable ties included: Yes Screws included: Yes Noise level (silent mode,
