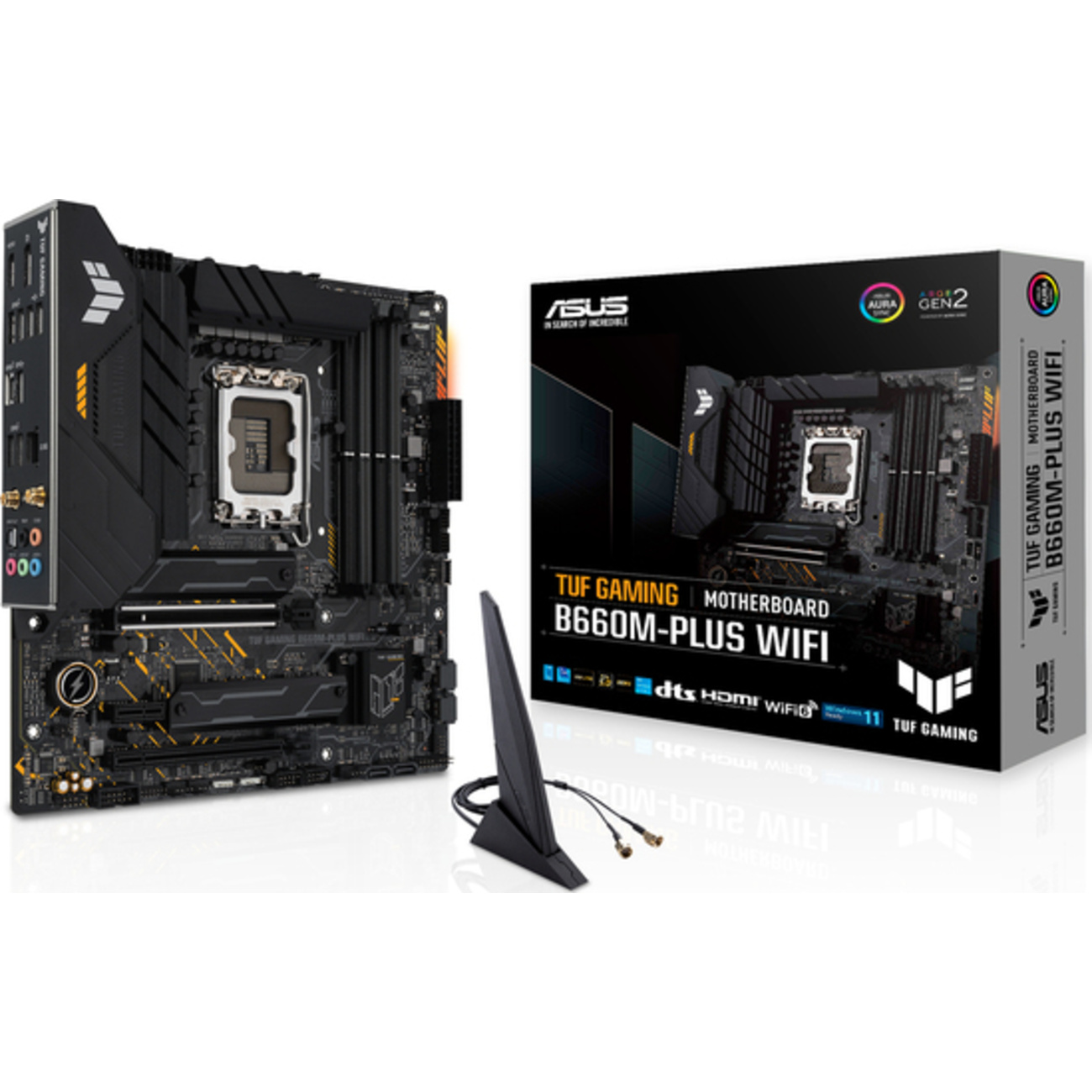

ASUS TUF GAMING B660M-PLUS WIFI Intel B660 LGA 1700 micro ATX Bundkort
Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron® Supported processor sockets: LGA 1700 Processor manufacturer: Intel Processor socket: LGA 1700 Parallel processing technology support: Not supported Harmonized System (HS) code: 84733020 Audio output channels: 7.1 channels Motherboard chipset: Intel B660 Motherboard form factor: micro ATX Motherboard chipset family: Intel Power source type: ATX Windows operating systems supported: Windows 11 x64, Windows 10 x64 Maximum internal memory: 128 GB Supported memory clock speeds: 6000, 5600, 5800, 5400, 5200, 5000, 4800 Unbuffered memory: Yes Memory channels: Dual-channel Memory slots type: DIMM Supported memory types: DDR5-SDRAM Number of memory slots: 4 Width: 244 mm Depth: 244 mm Height: 68 mm Bluetooth version: 5.2 Bluetooth: Yes Ethernet LAN: Yes Wi-Fi standards: 802.11a, Wi-Fi 6 (802.11ax), 802.11g, 802.11b, Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n) Top Wi-Fi standard: Wi-Fi 6 (802.11ax) Ethernet interface type: 2.5 Gigabit Ethernet Wi-Fi: Yes 12V power connector: Yes USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2 RGB LED pin header: Yes Thunderbolt headers: 1 Number of SATA III connectors: 4 USB 2.0 connectors: 2 Front panel audio connector: Yes ATX Power connector (24-pin): Yes Number of chassis fan connectors: 3 EPS power connector (8-pin): Yes Front panel connector: Yes CPU fan connector: Yes Number of COM connectors: 1 Chassis intrusion connector: Yes Clear CMOS jumper: Yes BIOS type: UEFI AMI Cables included: SATA Supported storage drive types: HDD & SSD Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III RAID support: Yes Number of storage drives supported: 6 Number of HDDs supported: 4 RAID levels: 10, 5, 0, 1 DisplayPort version: 1.4 DisplayPorts quantity: 1 USB 3.2 Gen 2x2 Type-C ports quantity: 1 WiFi-AP antenna jack: 2 USB 2.0 ports quantity: 2 Ethernet LAN (RJ-45) ports: 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4 Headphone outputs: 5 HDMI version: 2.1 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1 HDMI ports quantity: 1 Digital audio optical out: 1 PCI Express x16 (Gen 5.x) slots: 1 PCI Express x16 (Gen 3.x) slots: 1 Number of M.2 (M) slots: 2 PCI Express x1 slots: 1 Weight: 1.35 kg
